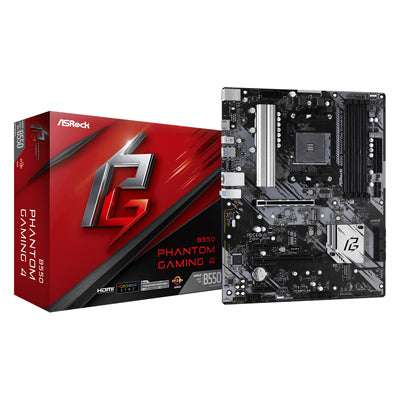

TARJETA MADRE ASROCK B550 PHANTOM GAMING 4 AM4

TARJETA MADRE ASROCK B550 PHANTOM GAMING 4 AM4

Precio habitual
$ 3,122.00
Precio de oferta
$ 3,122.00
Precio unitario
por
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pagos.

    • Gaming Armor
      Memory
      - 15μ Gold Contact in DIMM Slots
      Cooling
      - XXL Aluminum Alloy Heatsink
      Audio
      - Nahimic Audio
    • Unique Feature
      ASRock Super Alloy
      - XXL Aluminum Alloy Heatsink
      - Premium 50A Power Choke
      - Sapphire Black PCB
      - High Density Glass Fabric PCB
      - 2oz Copper PCB
      ASRock Steel Slot Gen4
      ASRock Hyper M.2 (PCIe Gen4x4)
      ASRock POST Status Checker (PSC)
      ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
      ASRock Live Update & APP Shop
    • CPU
      - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
      - Digi Power design
      - 8 Power Phase design

      *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
    • Chipset
      - AMD B550
    • Memory
      - Dual Channel DDR4 Memory Technology
      - 4 x DDR4 DIMM Slots
      - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
      - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
      - Max. capacity of system memory: 128GB**
      - Supports Extreme Memory Profile (XMP) memory modules
      - 15μ Gold Contact in DIMM Slots

      *For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.

      Ryzen Series CPUs (Matisse):


      Ryzen Series APUs (Renoir):


      SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
      DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

      **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    • BIOS
      - 256Mb AMI UEFI Legal BIOS with GUI support
      - Supports "Plug and Play"
      - ACPI 5.1 compliance wake up events
      - Supports jumperfree
      - SMBIOS 2.3 support
      - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
    • Graphics
      - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
      - DirectX 12, Pixel Shader 5.0
      - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
      - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
      - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
      - Supports HDR (High Dynamic Range) with HDMI 2.1
      - Supports HDCP 2.3 with HDMI 2.1 Port
      - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
      - Supports Microsoft® PlayReady

      *Actual support may vary by CPU

      **The Max shared memory 16GB requires 32GB system memory installed.
    • Audio
      - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
      - Premium Blu-ray Audio support
      - Supports Surge Protection
      - PCB Isolate Shielding
      - Individual PCB Layers for R/L Audio Channel
      - Nahimic Audio
    • LAN
      - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
      - Realtek RTL8111H
      - Supports Wake-On-LAN
      - Supports Lightning/ESD Protection
      - Supports Energy Efficient Ethernet 802.3az
      - Supports PXE
    • Slots
      AMD Ryzen series CPUs (Matisse)
      - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
      AMD Ryzen series APUs (Renoir)
      - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*

      - 2 x PCI Express 3.0 x1 Slots
      - Supports AMD Quad CrossFireX™ and CrossFireX™
      - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

      *Supports NVMe SSD as boot disks
    • Storage
      - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*

      - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)**
      - 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

      * M2_3 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.

      ** Supports NVMe SSD as boot disks
      Supports ASRock U.2 Kit
  • Connector
    - 1 x COM Port Header
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 2 x RGB LED Headers*
    - 2 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x 4 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *Support in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Ports
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Polychrome SYNC
    - ASRock Key Master
    - ASRock XFast LAN
    UEFI
    - ASRock Full HD UEFI
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 3 x Screw for M.2 Socket
  • Hardware Monitor
    - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - Solid Capacitor design
    - 2oz Copper PCB
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
