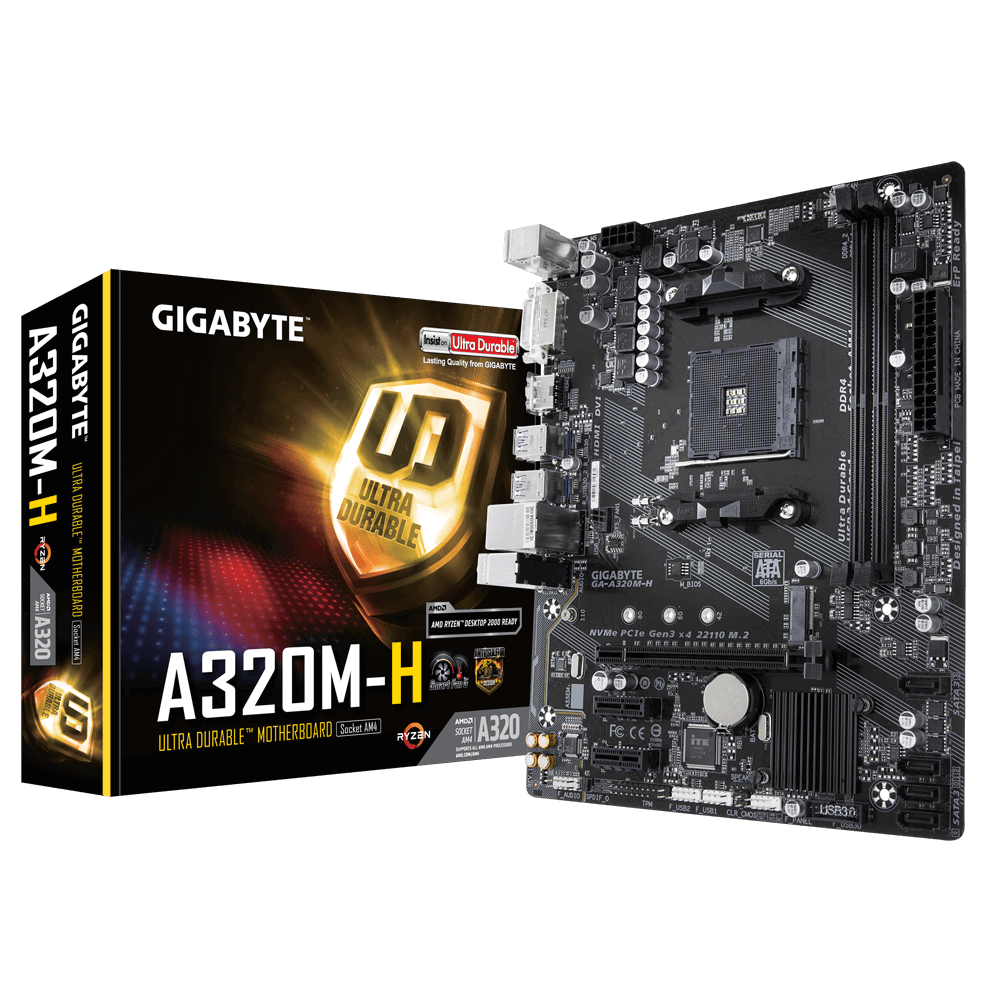

TARJETA MADRE GIGABYTE A320M-H AM4 2xDDR4 MATX

TARJETA MADRE GIGABYTE A320M-H AM4 2xDDR4 MATX

Precio habitual $ 1,325.00 MXN
Precio habitual Precio de oferta $ 1,325.00 MXN
Oferta Agotado
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
  • Procesador
    1. AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD A320
  • Memoria
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
      * Actual support may vary by CPU.
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráficos Integrados
    Integrated Graphics Processor:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 2 GB

    * Actual support may vary by CPU.
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Puertos de Expansión
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * Actual support may vary by CPU.
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Interfaz de Almacenamiento
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
      * Actual support may vary by CPU.
      * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
  • USB
    Chipset:
    1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x USB 3.1 Gen 1 header
    11. 2 x USB 2.0/1.1 headers
    12. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    13. 1 x speaker header
    14. 1 x Clear CMOS jumper
    15. 1 x chassis intrusion header
  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 4 x USB 3.1 Gen 1 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In, Line Out, Mic In)
  • Controlador de E/S
    1. iTE® I/O Controller Chip
  • Monitorización H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Características Únicas
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      3D OSD
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Software Incluido
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Sistema Operativo
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Diseño
    1. Micro ATX Form Factor; 24.4cm x 19.5cm
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
