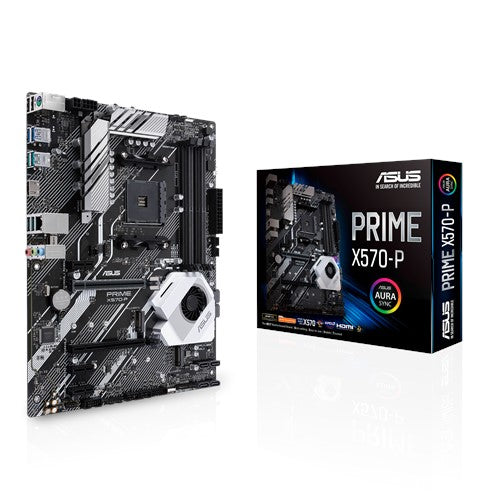

TARJETA MADRE ASUS PRIME X570-P AM4 4xDDR4 DUAL M.2 AURA SYNC RGB ATX

AMD AM4 Socket 3rd and 2nd AMD Ryzenƒ?øǜ¶½/2nd and 1st Gen AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics Processors
* Refer toǾÇ?www.asus.comǾÇ?for CPU support list
* Due to CPU limitation, CPU cores supported varies by processors.

AMD X570

3rd Gen AMD Ryzenƒ?øǜ¶½ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzenƒ?øǜ¶½ Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer toǾÇ?www.asus.comǾÇ?for the Memory QVL (Qualified Vendors Lists).
* The maximum memory capacity supported vary depending on the CPU you installed.

Integrated Graphics in the 2nd and 1st Gen AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics Processors
VGA output support : HDMI port
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz

3rd and 2nd Gen AMD Ryzenƒ?øǜ¶½/2nd and 1st Gen AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics Processors
Supports AMD 2-Way CrossFireXƒ?øǜ¶½ Technology

3rd Gen AMD Ryzenƒ?øǜ¶½ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzenƒ?øǜ¶½ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1

3rd Gen AMD Ryzenƒ?øǜ¶½ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzenƒ?øǜ¶½/2nd and 1st Gen AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

RealtekǾ¶ù RTL8111H
ASUS LAN Guard

RealtekǾ¶ù S1200A 8-Channel High Definition Audio CODEC *
- Supports : Jack-detection, Front Panel Jack-retasking
- Front panel audio connector (AAFP)
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

3rd and 2nd Gen AMD Ryzenƒ?øǜ¶½/2nd and 1st Gen AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics Processors :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *)
3rd and 2nd Gen AMD Ryzenƒ?øǜ¶½/2nd and 1st Gen AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics Processors :
2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)
AMD X570 chipset :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
AMD X570 chipset :
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
AMD X570 chipset :
5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)
* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzenƒ?øǜ¶½ Processors

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM - Digital power design with Dr. MOS
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS SafeSlotǾÇ?- Protect your graphics card Investment
ASUS OptiMemƒ?½??
- Improved DDR4 Stability
ASUS EPU :
- EPU
AURA :
- Aura RGB Strip Headers
- Aura Control
- Addressable Gen 2 Header
ASUS Exclusive FeaturesǾÇ?:
- AI Suite 3
- Ai Charger
- Armoury Crate
ASUS Quiet Thermal SolutionǾÇ?:
- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
3 x Audio jack(s)
2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A *)
* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzenƒ?øǜ¶½ Processors

2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x PCH_FAN (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Extension cable for Addressable LED

256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

WOL by PME, PXE

WindowsǾ¶ù 10 64-bit

ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
