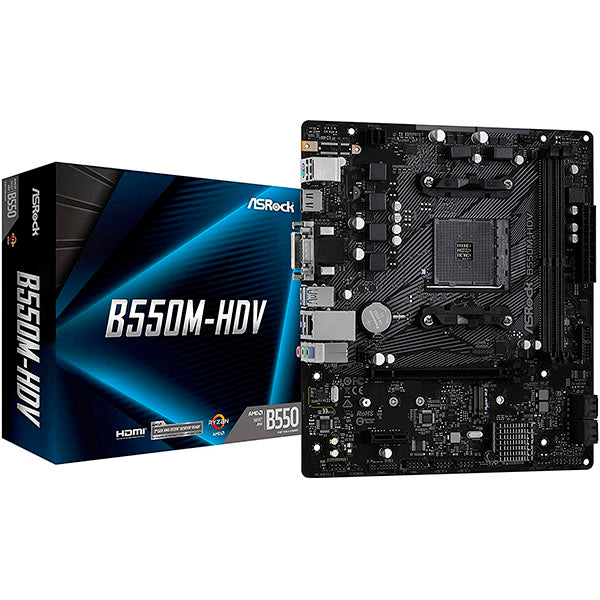

TARJETA MADRE ASROCK B550M-HDV AM4 MATX

TARJETA MADRE ASROCK B550M-HDV AM4 MATX

Precio habitual $ 2,121.00 MXN
Precio habitual Precio de oferta $ 2,121.00 MXN
Oferta Agotado
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
  • Unique Feature
    ASRock Super Alloy
    - Premium 50A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Hyper M.2 (PCIe Gen4x4)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
    - 6 Power Phase design

    *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
  • Chipset
    - AMD B550
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM Slots
    - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - Max. capacity of system memory: 64GB**
    - Supports Extreme Memory Profile (XMP) memory modules
    - 15μ Gold Contact in DIMM Slots*

    *Ryzen Series CPUs (Matisse):


    Ryzen Series APUs (Renoir):


    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
    - Supports "Plug and Play"
    - ACPI 5.1 compliance wake up events
    - Supports jumperfree
    - SMBIOS 2.3 support
    - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
  • Graphics
    - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
    - DirectX 12, Pixel Shader 5.0
    - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    - Supports HDR (High Dynamic Range) with HDMI 2.1
    - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
    - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    - Supports Microsoft® PlayReady

    *Actual support may vary by CPU

    **The Max shared memory 16GB requires 32GB system memory installed.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
    - Supports Surge Protection
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111H
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    AMD Ryzen series CPUs (Matisse)
    - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
    AMD Ryzen series APUs (Renoir)
    - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

    - 1 x PCI Express 3.0 x1 Slot

    *Supports NVMe SSD as boot disks
  • Storage
    - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    - 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)*

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    - 1 x SPI TPM Header
    - 1 x COM Port Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 4 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
    CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    UEFI
    - ASRock Full HD UEFI
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 1 x Screw for M.2 Socket
  • Hardware Monitor
    - Temperature Sensing: CPU, Chassis Fans
    - Fan Tachometer: CPU, Chassis Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
    - Fan Multi-Speed Control: CPU, Chassis Fans
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
    - Solid Capacitor design
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
