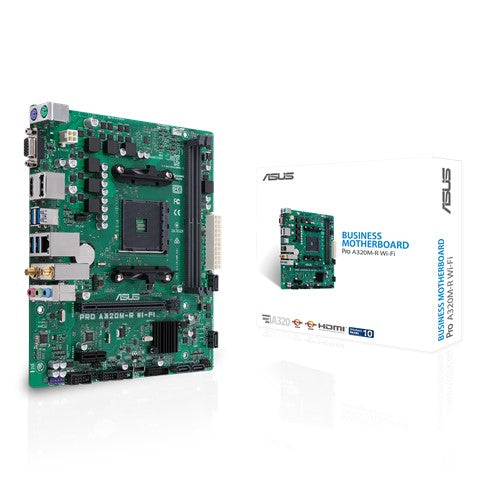

TARJETA MADRE ASUS PRO A320M-R WIFI AM4 2xDDR4 MATX

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7^th Generation A-series/Athlon X4 Processors
Supports CPU up to 8  cores
* Refer to www.asus.com for CPU support list

AMD A320

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 32GB, DDR4 2933/2666/2400/2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU
Multi-VGA output support : HDMI/RGB/DisplayPort   ports
- Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz / 2560  x 1600  @ 60  Hz
- Supports RGB with max. resolution 1920  x 1200  @ 60  Hz
- Supports DisplayPort with max. resolution 4096  x 2304  @ 60  Hz
Maximum shared memory of 2048  MB (for iGPU exclusively)

3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD A320 chipset
1 x PCIe 3.0/2.0 x1

AMD A320 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Wi-Fi 802.11 a/b/g/n/ac

Bluetooth® 5.0

Realtek® ALC887 8-Channel High Definition Audio CODEC

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/ Athlon™ X4 Processors :
1 x USB 3.1 Gen 2 port(s) (Type-C, 1 at mid-board)
AMD A320 chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
AMD A320 chipset :
4 x USB 2.0 port(s) (4 at mid-board)

ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Bespoke Motherboard Design & Business Focused Features :
- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
- ASUS Event Log: Record activities of system and provides information in BIOS
- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
- Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
- 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design:
- Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue)
3 x Audio jack(s)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

1 x USB 3.1 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SPI TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x LPC Debug header
1 x Speaker connector

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x Wi-Fi Antenna(s)

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit

Windows® 10 64-bit

mATX Form Factor
8.9  inch x 7.9  inch ( 22.9  cm x 20.3  cm )

* Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation / 7th Generation A-series/ Athlon X4 Processors.
