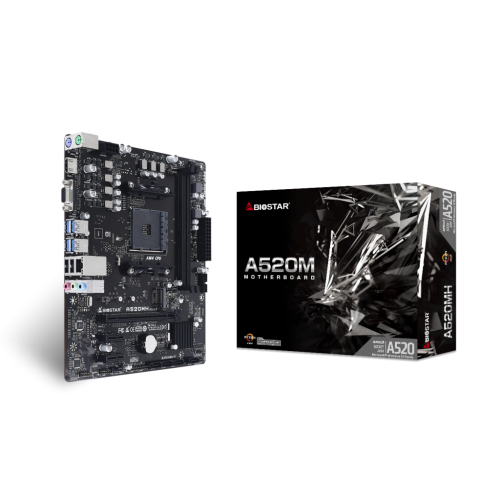

TARJETA MADRE BIOSTAR A520MH AM4 MATX

TARJETA MADRE BIOSTAR A520MH AM4 MATX

Precio habitual $ 1,239.00 MXN
Precio habitual $ 1,279.00 MXN Precio de oferta $ 1,239.00 MXN
Oferta Agotado
Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.
Chipset AMD A520
CPU SUPPORT Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY 3rd Gen AMD Ryzen Processors (Matisse CPUs)
Supports for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs)
Supports for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports
AMD Ryzen 5000/5000 G/4000 G/3000 Processors
1 x M.2 (M Key) Socket (M2_PCIE_SATA1):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD
AMD A520 Chipset
4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
* Specifications vary by CPU types
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection
AUDIO CODEC ALC887
7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT AMD Ryzen 5000/3000 Series Processors
1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode)
or
AMD Ryzen 5000 G/4000 G Series Processors
1 x PCIe 3.0 x16 Slot(x16 or x8/x4/x4 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 Slot
* According to different CPUs will have different speeds.
* Specifications vary by CPU types
REAR I/O 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio Jack
INTERNAL I/O 4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x COM Port Header
1 x TPM Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports 100% Solid capacitor
BIO-FLASHER
A.I FAN
PCIe M.2 32Gb/s
*Precaución!! La especificación y cuadros son sujetos de cambio sin aviso!
