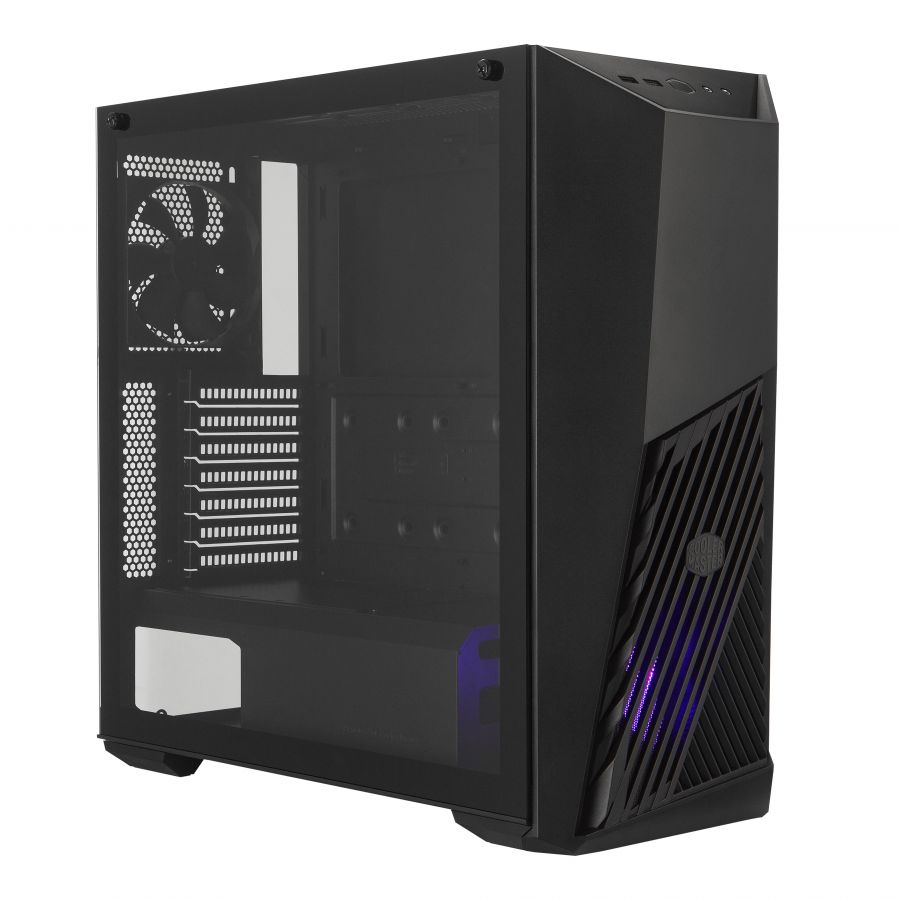

GABINETE COOLER MASTER MASTERBOX K501L RGB ATX MCB-K501L-KGNN-SR1

MODEL NUMBER
MCB-K501L-KANN-S00 (MasterBox K501L), MCB-K501L-KGNN-SR1 (MasterBox K501L RGB)
AVAILABLE COLOR(S)
Black
MATERIALS
Steel, Mesh, Plastic, Acrylic (MCB-K501L-KANN-S00), Tempered Glass (MCB-K501L-KGNN-SR1)
DIMENSIONS (L X W X H)
496mm x 217mm x 469mm (incl. Protrusions), 428.7mm x 205mm x 458.5mm (excl. Protrusions)
VOLUME (EXLC. PROTRUSIONS)
40.3L
MOTHERBOARD SUPPORT
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)
EXPANSION SLOTS
7
5.25" DRIVE BAYS
0
2.5" / 3.5" DRIVE BAYS (COMBO)
2
2.5" DRIVE BAYS
4 (2+2 combo)
I/O PANEL
1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
PRE-INSTALLED FANS - TOP
N/A
PRE-INSTALLED FANS - FRONT
1x 120mm Red LED (MCB-K501L-KANN-S00), 1x 120mm RGB LED (MCB-K501L-KGNN-SR1)
PRE-INSTALLED FANS - REAR
1x 120mm
FAN SUPPORT - TOP
3x 120mm, 2x 140mm
FAN SUPPORT - FRONT
3x 120mm, 2x 140mm
FAN SUPPORT - REAR
1x 120mm
FAN SUPPORT - BOTTOM
N/A
CLEARANCE - CPU COOLER
165mm/6.49"
CLEARANCE - PSU
180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
CLEARANCE - GFX
410mm/16.1"
CABLE ROUTING
19mm/0.74"
DUST FILTERS
Top, Front, Bottom
POWER SUPPLY SUPPORT
Bottom mount, ATX
WARRANTY
2 years
EAN CODE
4719512090749 (MCB-K501L-KANN-S00), 4719512094600 (MCB-K501L-KGNN-SR1)
UPC CODE
884102063169 (MCB-K501L-KANN-S00), 884102067020 (MCB-K501L-KGNN-SR1)
WEIGHT
4.9 kg, 6.3 kg
SERIES
MasterBox Series
SIZE
Mid Tower
