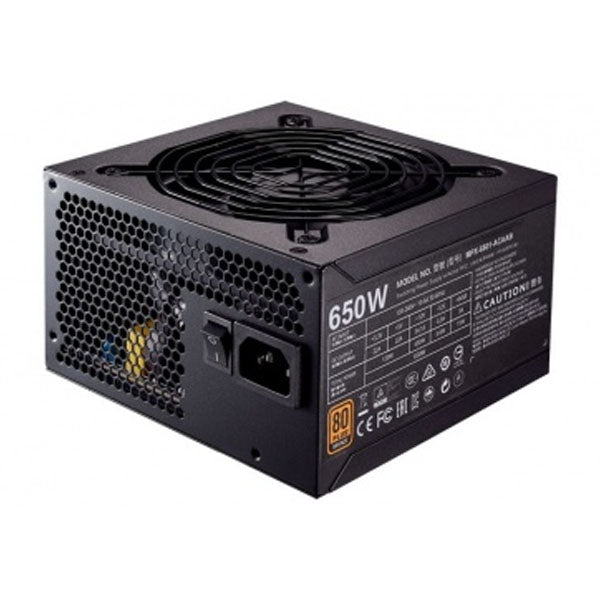

FUENTE DE PODER COOLER MASTER MWE 650W 80+BRONCE MPX-6501-ACAAB-U1

PRODUCT NAME
MWE Bronze 650
MODEL
MPX-6501-ACAAB
ATX VERSION
ATX 12V V2.31
PFC
Active PFC
OPERATION VOLTAGE
100-240Vac
INPUT VOLTAGE
100-240Vac
INPUT CURRENT
10-5A
INPUT FREQUENCY
50-60Hz
DIMENSIONS (L X W X H)
140 x 150 x 86 mm
FAN SIZE
120mm
FAN BEARING
LDB
POWER GOOD SIGNAL
100-500ms
HOLD UP TIME
16ms at 80% Load
EFFICIENCY
85% @ Typical Load
ERP 2013 LOT 6
Yes
MTBF
>100,000 Hours
OPERATING TEMPERATURE
0-40°C
PROTECTIONS
OPP, OVP, UVP, OCP, OTP, SCP
REGULATORY
TUV-RH, CE, CCC, KC, EAC, RCM, cTUVus, FCC, BSMI
MB 20+4 PIN CONNECTORS
1
CPU 12V 4+4 PIN CONNECTORS
1
SATA CONNECTORS
8
PERIPHERAL 4-PIN CONNECTORS
4
FDD CABLE 4-PIN CONNECTORS
1
PCI-E 6+2 PIN CONNECTORS
4
80 PLUS
Bronze
MODULAR
Non Modular
WATTAGE
500 to 750W
SERIE
MWE Bronze Series
