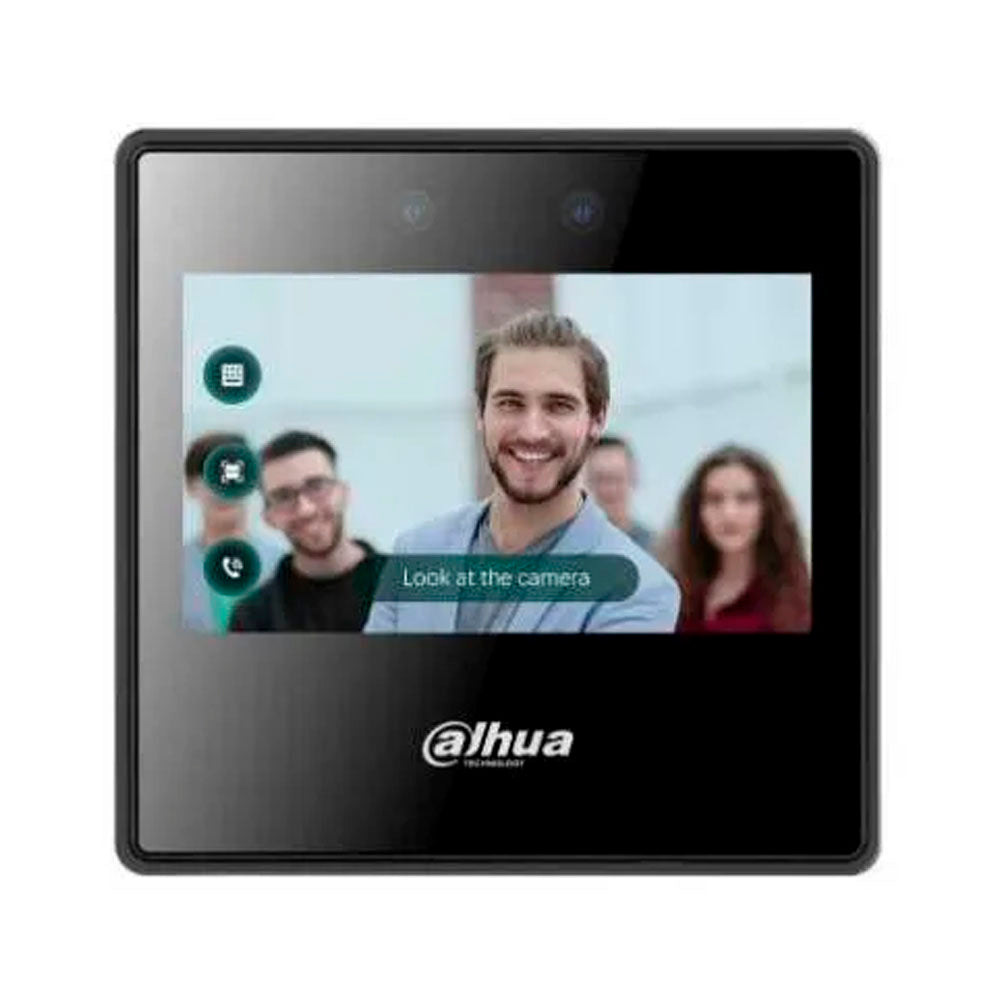

CONTROL DE ACCESO DAHUA TECHNOLOGY DHI-ASI3223A CON RECONOCIMIENTO FACIAL CAPACIDAD 2000 USUARIOS, NO REQUIERE SOFTWARE.

System

Main Processor

Embedded Processor

Network Protocol

IPv4;RTSP;RTP;TCP;UDP;SIP;P2P

OSDP Protocol

Yes

Interoperability

ONVIF;CGI

SDK and API

Yes

Basic

Product Type

Standalone

Display Screen

4.3" LCD

Screen Type

Capacitive Touchscreen

Screen Resolution

480 (H) × 272 (V)

Camera

2-MP CMOS HD dual-lens camera

WDR

DWDR

Light Compensation

Auto IR

Voice Prompt

Yes

Casing

PC + ABS

Function

Unlock Mode

Password, remote, face and combination unlock

Period List

128 periods

Holiday Period

128 periods

Network Update

Yes

First User Unlock

Yes

Remote Verification

Yes

Restricted List/Trusted List

Yes

Peripheral Card Reader

1 × RS–485 card reader; 1 × Wiegand card reader

Multi-user Authentication

Yes

Real-time Monitoring

Yes

Web Configuration

Yes

Auto Registration

Yes

Performance

Face Recognition Height Range

1.1 m– 2.0 m (3.61 ft–6.56 ft)

Face Recognition Distance

0.3 m–1.5 m (0.98 ft–4.92 ft)

Face Recognition Accuracy

99.9%

Face Recognition Time

0.2 s

Read Speed (QR Code )

500 ms

Code Type

Paper; Electronic

User

User (Card) Type

Normal user; VIP users; patrol users; guest user; blocklist user; other user

Capacity

User Capacity

2,000

Face Image Capacity

2,000

Password Capacity

2,000

Record Capacity

300,000

Port

RS-485

1

Wiegand

1

USB

1 × USB 2.0

Network Port

1 × RJ-45 10/100 Mbps self-adaptive Ethernet port

Exit Button

1

Lock Control

1

Door Status Detection

1

Alarm

Anti-pass Back

Yes

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

General

Power Adapter

Standard

Power Supply

12 VDC, 1.5 A

Power Consumption

≤18 W

Product Dimensions

115.0 mm × 118.0 mm × 27.1 mm (4.53" × 4.65" × 1.07") (H × W × W)

Packaging Dimensions

190 mm × 179 mm × 127 mm (7.48" × 4.65" × 5.00") (L × W × H, protection box)

Operating Temperature

–10 °C to +40 °C (+14 °F to +104 °F)

Operating Humidity

0%–90% (RH), non-condensing

Operating Environment

Indoor

Net Weight

250 g (0.55 lb)

Gross Weight

400 g (0.88 lb)

Accessory

Wall mount bracket (included)

Installation

Wall; 86 case mount; Desk Mount
