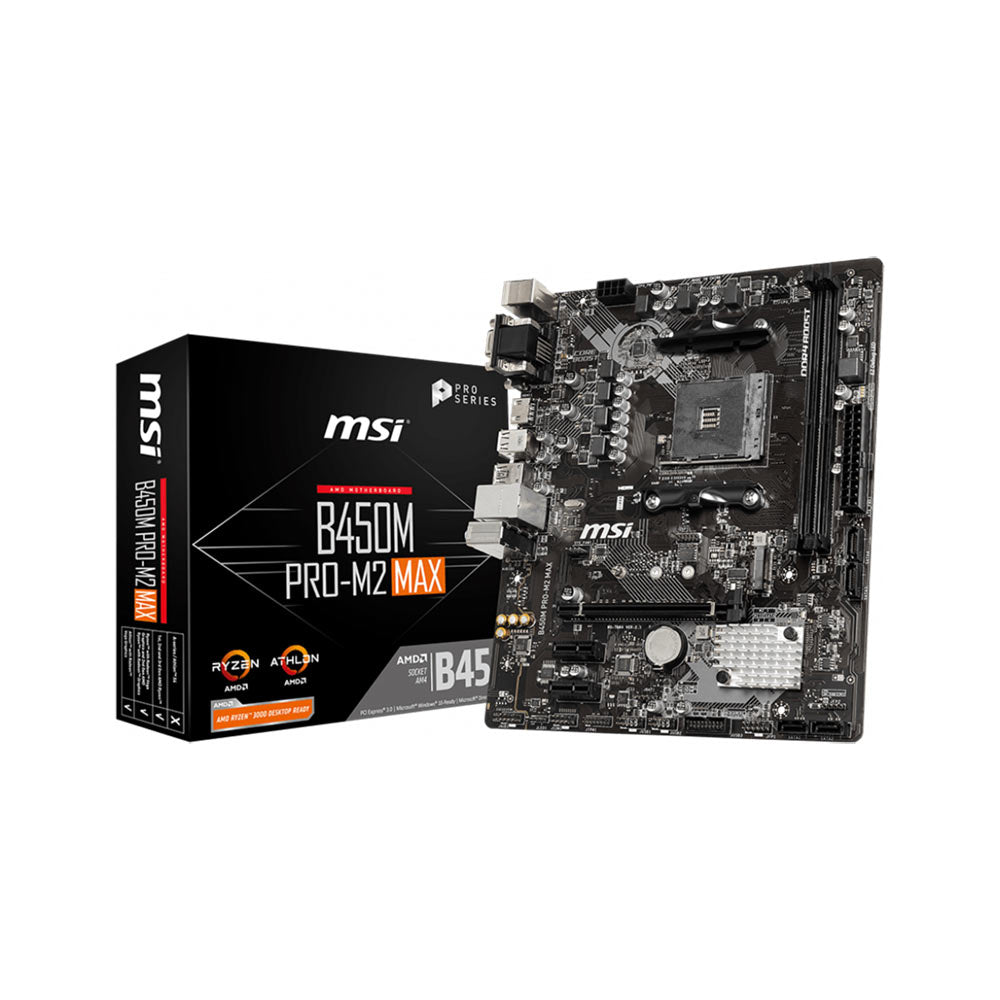

TARJETA MADRE MSI (B450M PRO-M2 MAX) AM4 2*DDR4 MATX

PROCESSOR
Supports 1st, 2nd and 3rd Gen AMD Ryzen?/ Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics/ Athlon? with Radeon? Vega Graphics Desktop Processors for Socket AM4

See supported processors

CHIPSET
AMD© B450 Chipset

MEMORY
2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC
For AMD Ryzen Gen3 (R5/R7/R9)
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz by A-XMP OC mode1
For AMD Other CPU
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
Dual channel memory architecture
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
Please refer www.msi.com for more information on compatible memory.
See supported memory

SLOTS
1 x PCIe 3.0 x16 slot (PCI_E1)
Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen? processors
Supports x8 speed with Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics processors
Supports x4 speed with AMD© Athlon? with Radeon? Vega Graphics Processors
2 x PCIe 2.0 x1 slots
ONBOARD GRAPHICS
1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1,2
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
1 x HDMI? 1.4 port, supports a maximum resolution of 4096x2160@30Hz1,2
Only support when using AMD© Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics/ Athlon? with Radeon? Vega Graphics ProcessorssMaximum shared memory of 2048 MB
STORAGE
AMD© B450 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen?/ Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics) or PCIe 3.0 x2 (AMD© Athlon? with Radeon? Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
USB
AMD© B450 Chipset
2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
AMD© processor
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek© ALC887 Codec
7.1-Channel High Definition Audio
LAN
1 x Realtek© 8111H Gigabit LAN controller
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x LED strip connector
1 x Clear CMOS jumper
BACK PANEL PORTS
Mouse
VGA Port
USB 2.0
LAN Port
HD Audio Connectors
Keyboard
DVI-D Port
HDMI Port
USB 3.2 Gen1
MSI
B450M PRO-m2 max back panel ports
DIMENSIONS
9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
m-ATX Form Factor
MOUNTING
9 mounting holes

OPERATING SYSTEMSupport for Windows© 10 64-bit
Support for Windows© 7 64-bit
* To support Windows© 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
