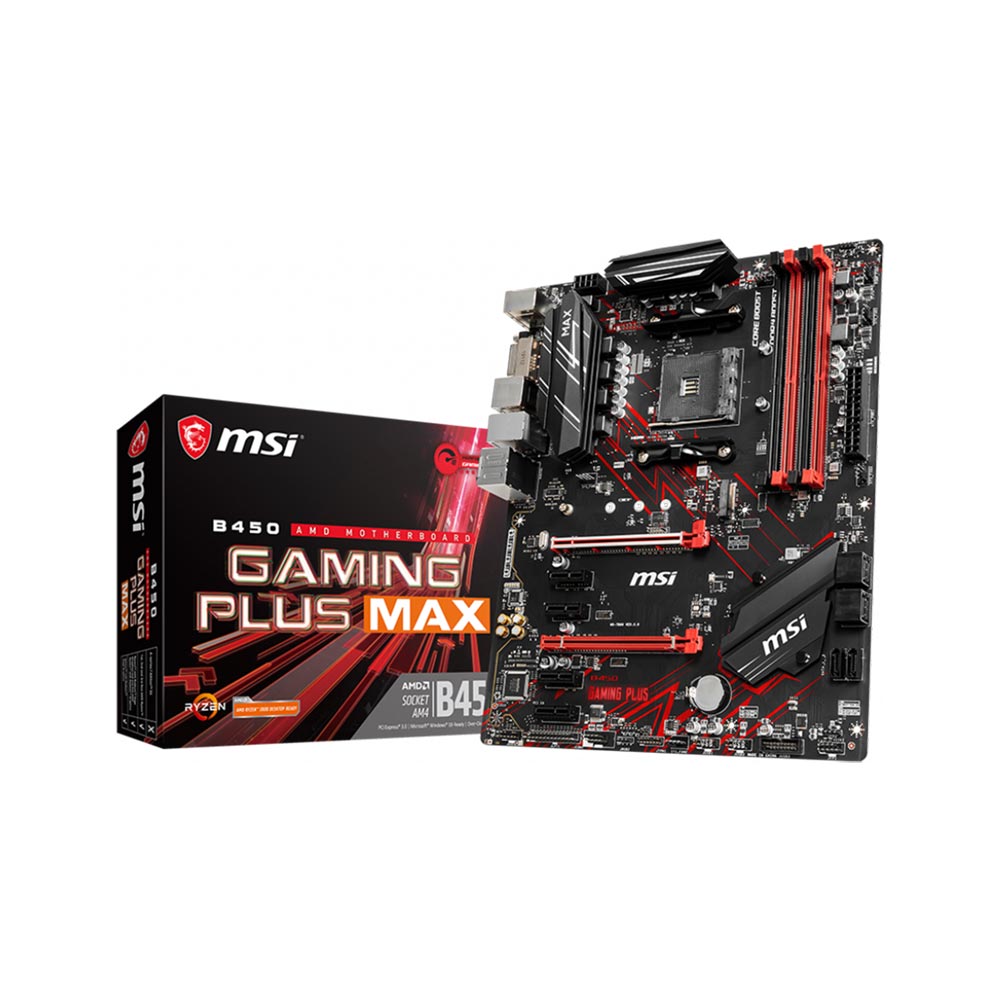

TARJETA MADRE MSI (B450 GAMING PLUS MAX) AM4 4*DDR4 CROSSFIRE ATX

PROCESSOR
Supports 1st, 2nd and 3rd Gen AMD Ryzen?, Ryzen? with Radeon? Vega Graphics, 2nd Gen AMD Ryzen? with Radeon? Graphics and Athlon? with Radeon? Vega Graphics Desktop Processors for Socket AM4

See supported processors

CHIPSET
AMD© B450 Chipset

MEMORY
4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
For AMD Other CPU
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
See supported memory

SLOTS
1 x PCIe 3.0 x16 slot (PCI_E1)
1st, 2nd and 3rd Gen AMD Ryzen? support x16 mode
Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics support x8 mode
Athlon? with Radeon? Vega Graphics support x4 mode
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
4 x PCIe 2.0 x1 slots1
PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
ONBOARD GRAPHICS
1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz1
1 x HDMI? 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1
Only support when using Ryzen? with Radeon? Vega Graphics, 2nd Gen AMD Ryzen? with Radeon? Graphics and Athlon? with Radeon? Vega Graphics processorsMaximum shared memory of 2048 MB
MULTI-GPU
Supports 2-Way AMD© CrossFire? Technology
STORAGE
AMD© CPU
2 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)1
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen?, Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics) or PCIe 3.0 x2 (Athlon? with Radeon? Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
AMD© B450 Chipset
4 x SATA 6Gb/s ports
SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
RAID
AMD© B450 Chipset
Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
USB
AMD© B450 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD© CPU
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek© ALC892 Codec
7.1-Channel High Definition Audio
LAN
1 x Realtek© 8111H Gigabit LAN controller
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Parallel port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors
BACK PANEL PORTS
PS/2 Combo Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
Flash BIOS Button
USB 2.0 Ports
DVI-D Port
HDMI Port
USB 3.2 Gen2
MSI B450 GAMING PLUS MAX back panel ports
DIMENSIONS
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
MOUNTING
9 mounting holes

OPERATING SYSTEM
Support for Windows© 10 64-bit
Support for Windows© 7 64-bit
* To support Windows© 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
