GPU

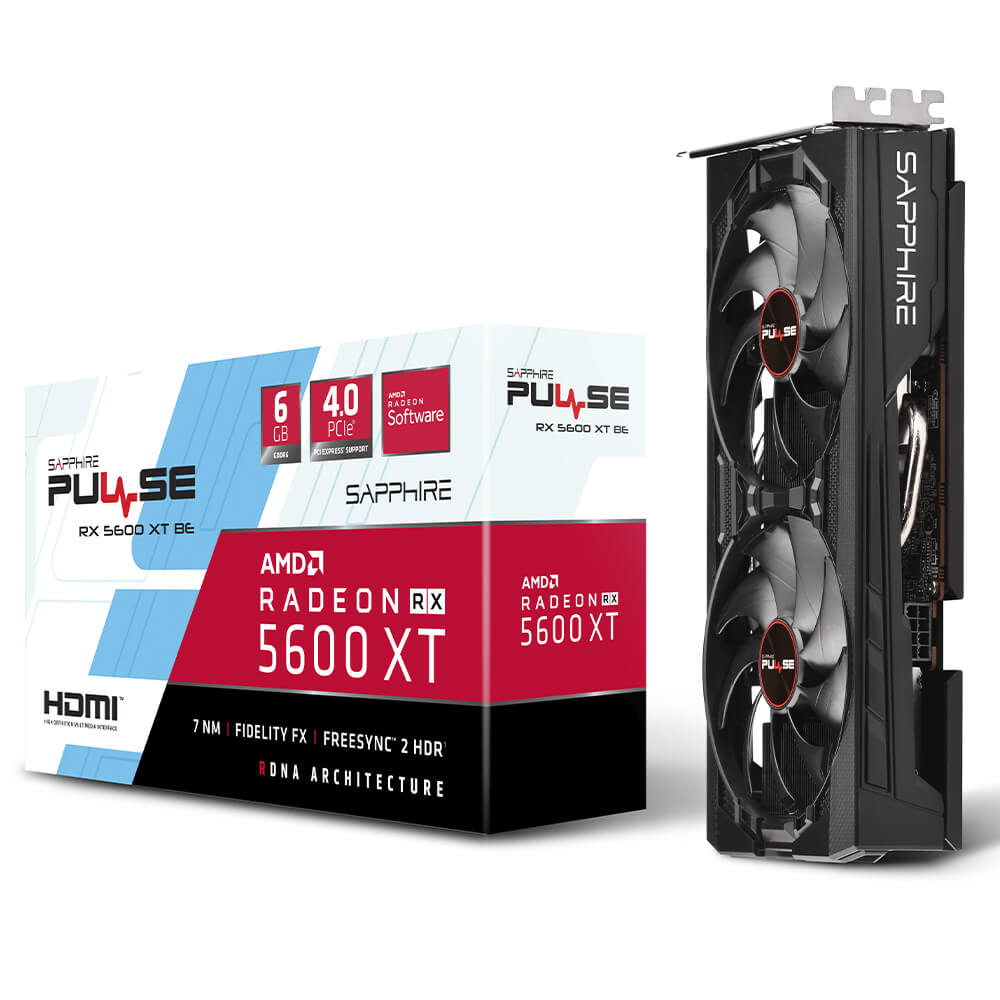

Radeon™ RX 5600 Graphics
2nd Gen 7nm GPU
RDNA Architecture
2nd Gen 7nm GPU
RDNA Architecture
Engine Clock
- Boost Clock: Up to 1620 MHz
- Game Clock: Up to 1560 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
2304
Memory Size/Bus
6GB/192 bit GDDR6
Memory Clock
14 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 4096×2160@60Hz
DisplayPort1.4: 5120×2880@60Hz
DisplayPort1.4: 5120×2880@60Hz
Interface
PCI-Express 4.0
Output
- 2x HDMI
- 2x DisplayPort
BIOS Support
- UEFI
API
- Vulkan®
- OpenGL® 4.6
- OpenCL 2.0
- DirectX® 12
- Shader Model 6.4
Game Index
Extreme 1080P, 1440P Entry
Sapphire Features
- Power Design
- Free Flow
- TriXX Supported
- TriXX Boost
- Intelligent Fan Control
- Precision Fan Control
- Robust VRM Cooling
- Dual-X Cooling Technology
- Tough Metal Backplate
- PCB Layers
- Two-Ball Bearing
- Fuse Protection
AMD Features
- RDNA Architecture
- 2nd Gen 7nm GPU
- GDDR6 Memory
- Power Efficiency
- PCI Express 4.0 Support
- Video Streaming up to 8K
- Display Port 1.4 (HBR3) / DSC
- Radeon™ Software
- Radeon™ Boost
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- AMD FidelityFx
- Async Compute
- Radeon™ Rays Audio + True Audio Next
- Radeon™ FreeSync™ 2 HDR
Cooling
- Dual-X Cooling
- Dual Fan
- Two-Ball Bearing
Form Factor
2 slot, ATX
Dimension: 230.5 x 122.5 x 40.1(mm)
Dimension: 230.5 x 122.5 x 40.1(mm)
Power Consumption
- 150W
OS
Linux®, Windows® 10, Windows® 7 64bit operating system required
System Requirement
- Recommended 500 Watt Power Supply (Minimum 450 Watt Power Supply).
- 1 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 4GB of system memory. 8GB recommended.
