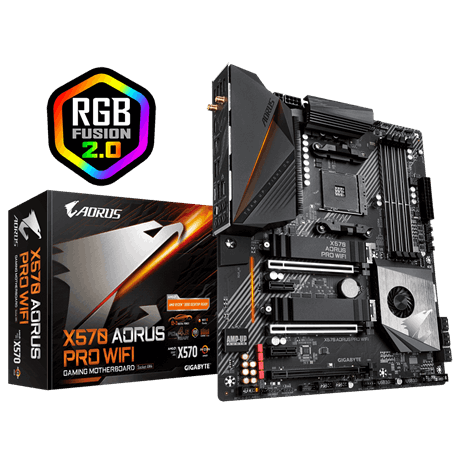

TARJETA MADRE GIGABYTE X570 AORUS PRO AM4 ATX

Name: TARJETA MADRE GIGABYTE X570 AORUS PRO AM4 ATX
Brand: ASI
SKU: X570 AORUS PRO
Price: 7556.0 MXN
Availability: OutOfStock

$ 7,556.00 MXN

Oferta Agotado

Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.

Variantes de producto

Cantidad

Procesador
1. AMD Socket AM4, support for: 3rd Generation AMD Ryzenƒ?øǜ¶½ processors/ 2nd Generation AMD Ryzenƒ?øǜ¶½ processors/ 2nd Generation AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors/ AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD X570
Memoria
1. 3rd Generation AMD Ryzenƒ?øǜ¶½ processors:
  Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2. 2nd Generation AMD Ryzenƒ?øǜ¶½ processors/AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors:
  Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-bufferedǾÇ?DIMM 1Rx8/2Rx8 memory modules*
  * ECC mode supported by 3rd Gen AMD Ryzenƒ?øǜ¶½/ 2nd Gen AMD Ryzenƒ?øǜ¶½ and only PRO sku of 2nd Gen AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors/ AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors.
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
GrÇ?ǁficos Integrados
Integrated Graphics Processor:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Maximum shared memory of 16 GB

Note: For 2nd Generation AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors/AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors only.
Audio
1. Realtek^Ǿ¶ùǾÇ?ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^Ǿ¶ùǾÇ?GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.
Puertos de ExpansiÇ??n
Integrated in the CPU (PCIEX16/PCIEX8):
Ǿǭ 3rd Generation AMD Ryzenƒ?øǜ¶½ processors:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
Ǿǭ 2nd Generation AMD Ryzenƒ?øǜ¶½ processors:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzenƒ?øǜ¶½ processors/2nd Generation AMD Ryzenƒ?øǜ¶½ processors and PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
Ǿǭ 2nd Generation AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors/AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset (PCIEX4/PCIEX1):
1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
  * For 3rd Generation AMD Ryzenƒ?øǜ¶½ processors only.
2. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
  * For 3rd Generation AMD Ryzenƒ?øǜ¶½ processors only.
TecnologÇ??a Multi-GrÇ?ǁficos
1. Support for NVIDIA^Ǿ¶ùǾÇ?Quad-GPU SLIƒ?øǜ¶½ and 2-Way NVIDIA^Ǿ¶ùǾÇ?SLIƒ?øǜ¶½ technologies
2. Support for AMD Quad-GPU CrossFireƒ?øǜ¶½ and 2-Way AMD CrossFireƒ?øǜ¶½ technologies
Note: For 3rd Generation AMD Ryzenƒ?øǜ¶½ processors/2nd Generation AMD Ryzenƒ?øǜ¶½ processors only.
Interfaz de Almacenamiento
Integrated in the CPU (M2A_SOCKET):
Ǿǭ 3rd Generation AMD Ryzenƒ?øǜ¶½ processors:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
Ǿǭ 2nd Generation AMD Ryzenƒ?øǜ¶½ processors/2nd Generation AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors/AMD Ryzenƒ?øǜ¶½ with Radeonƒ?øǜ¶½ Vega Graphics processors:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET):
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
  * For 3rd Generation AMD Ryzenƒ?øǜ¶½ processors only.
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10
USB
Integrated in the CPU:
1. 3 x USB 3.2 Gen 1 ports on the back panel
2. 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel
  * For 3rd Generation AMD Ryzenƒ?øǜ¶½ processors only.
Chipset:
1. 1 x USB Type-Cƒ?øǜ¶½ port with USB 3.2 Gen 2 support, available through the internal USB header
2. 1 x USB Type-Cƒ?øǜ¶½ port on the back panel, with USB 3.2 Gen 2 support
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Conectores Internos de E/S
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 3 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 2 x M.2 Socket 3 connectors
12. 6 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB Type-Cƒ?øǜ¶½ port, with USB 3.2 Gen 2 support
16. 2 x USB 3.2 Gen 1 headers
17. 2 x USB 2.0/1.1 headers
18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19. 1 x Clear CMOS jumper
20. 2 x temperature sensor headers
21. 1 x Q-Flash Plus button
22. 1 x Thunderboltƒ?øǜ¶½ add-in card connector (Only rev1.1 available)
Conectores del Panel Trasero
1. 2 x SMA antenna connectors (2T2R)
2. 1 x HDMI port
3. 1 x USB Type-Cƒ?øǜ¶½ port, with USB 3.2 Gen 2 support
4. 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red)
  * For 3rd Generation AMD Ryzenƒ?øǜ¶½ processors only.
5. 1 x USB 3.2 Gen 2 Type-A port (red)
6. 3 x USB 3.2 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks
Controlador de E/S
1. iTE^Ǿ¶ùǾÇ?I/O Controller Chip
MonitorizaciÇ??n H/W
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOSƒ?øǜ¶½
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
CaracterÇ??sticas Ç??nicas
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart Survey
  System Information Viewer
  USB Blocker
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Software Incluido
1. Norton^Ǿ¶ùǾÇ?Internet Security (OEM version)
2. cFosSpeed
3. XSplit Gamecaster + Broadcaster (12 months license)
Sistema Operativo
1. Support for Windows 10 64-bit
DiseÞño
1. ATX Form Factor; 30.5cm x 24.4cm
Otras Descripciones
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* Todos los materiales aquÇ?? provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueÞños.
* Debido a la arquitectura estÇ?ǁndar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
