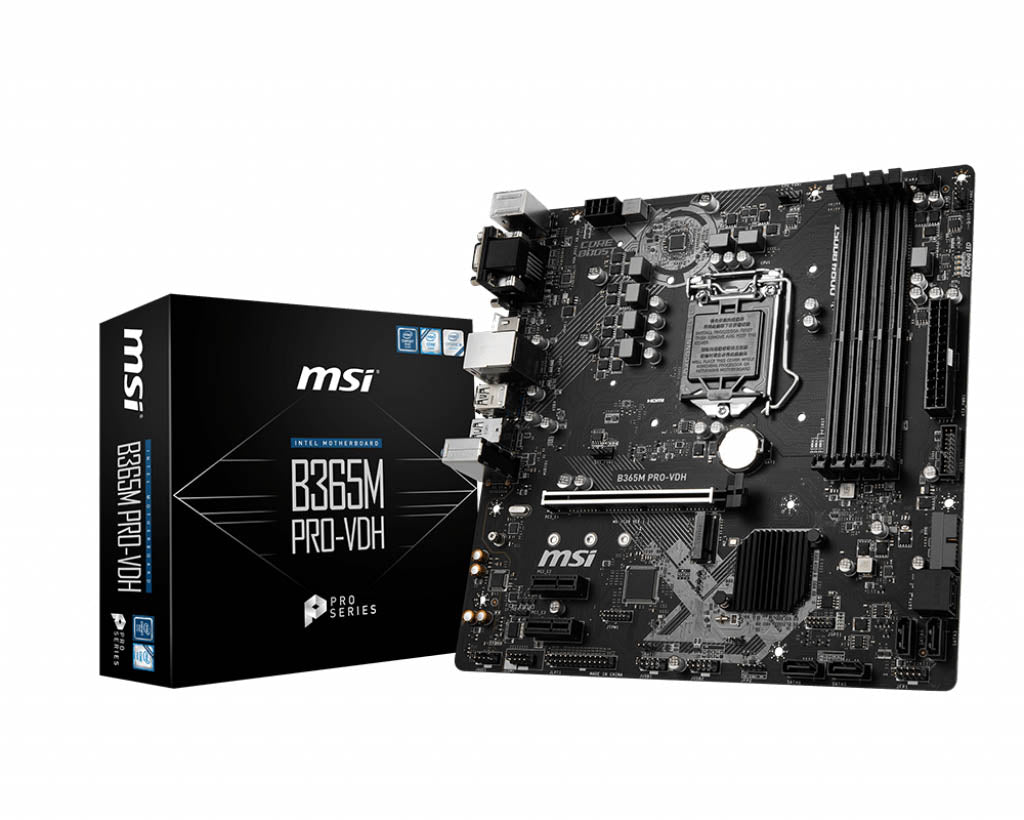

TARJETA MADRE MSI B365M PRO-VDH 1151 4xDDR4 MATX

PROCESSOR
Supports 9th/8th Gen Intel© Core? / Pentium© Gold / Celeron© processors for LGA 1151 socket

See supported processors

CHIPSET
Intel© B365 Chipset

MEMORY
4x DDR4 memory slots, support up to 64GB
Supports DDR4 2666/ 2400/ 2133 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel© Extreme Memory Profile (XMP)
Please refer to Compatibility for more information on compatible memory
See supported memory

SLOTS
1 x PCIe 3.0 x16 slot
2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI? port 1.4, supports a maximum resolution of 4096x2160@30Hz
STORAGE
Intel© B365 Chipset
6 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
Intel© Optane? Memory Ready2
The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.Before using Intel© Optane? memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel© B365 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
USB
Intel© B365 Chipset
8 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 4 ports available through the internal USB connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
Realtek© ALC892 Codec
7.1-Channel High Definition Audio
LAN
1 x Realtek RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connector (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
1 x Parallel port connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x 4-pin RGB LED connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
BACK PANEL PORTS
Mouse Port
VGA Port
HDMI Port
LAN Port
USB 3.1 Gen1
USB 3.1 Gen1 Type A
Keyboard Port
DVI-D Port
USB 2.0 Ports
USB 3.1 Gen1 Type C
HD Audio Connectors
MSI B365M PRO-VH back panel ports
DIMENSIONS
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Micro-ATX Form Factor
MOUNTING
8 mounting holes

OPERATING SYSTEM
Support for Windows© 10 64-bit
